Flash breakpoints dialog box

In this section:

The Flash breakpoints dialog box is available from the context menu in the editor window, the Breakpoints window, the Memory window, and in the Disassembly window.

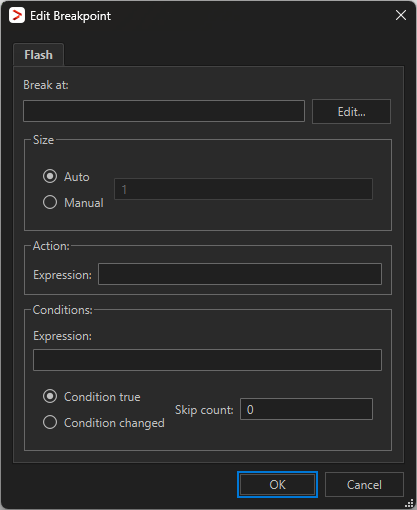

Use the Flash breakpoints dialog box to set a flash breakpoint.

Requirements

The C-SPY I-jet driver.

Break At

Specify the code location of the breakpoint in the text box. Alternatively, click the Edit button to open the Enter Location dialog box, see Enter Location dialog box.

Action

Specify a valid C-SPY expression, which is evaluated when the breakpoint is triggered and the condition is true. For more information, see Useful breakpoint hints.

Conditions

Specify simple or complex conditions:

Expression

Specify a valid C-SPY expression, see C-SPY expressions.

Condition true

The breakpoint is triggered if the value of the expression is true.

Condition changed

The breakpoint is triggered if the value of the expression has changed since it was last evaluated.

Skip count

The number of times that the breakpoint condition must be fulfilled before the breakpoint starts triggering. After that, the breakpoint will trigger every time the condition is fulfilled.
