CMSIS-DAP — Interface

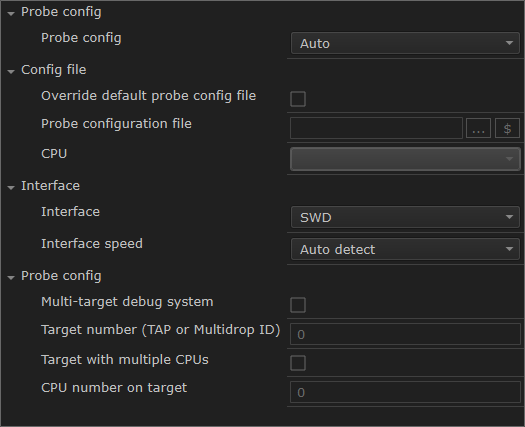

The Interface options specify the interface between CMSIS-DAP and the target system.

Probe config
- Auto
The CMSIS-DAP driver automatically identifies the target CPU. It uses the default probe configuration file, if there is one. This works best if there is only one CPU present.
- From file
Specifies that the probe configuration file needs to be overridden, or that there are several target CPUs.
- Explicit
Specify how to find the target CPU.
Probe configuration file
- Override default probe config file
Specify a probe configuration file to be used instead of the default probe configuration file that comes with the product package.
- CPU
Specify how to find the target CPU.
Interface
Selects the communication interface between the debug probe and the target system. Choose between:
- JTAG
Uses the JTAG interface.
- SWD
Uses the SWD interface.
Interface speed
Specifies the JTAG and SWD communication speed. Choose between:
- Auto detect
Automatically uses the highest possible frequency for reliable operation.
- Adaptive
Synchronizes the clock to the processor clock outside the core. Works only with Arm devices that have the
RTCKJTAG signal available.
- n MHz
Sets the JTAG and SWD communication speed to the selected frequency.
If there are JTAG communication problems or problems in writing to target memory (for example during program download), these problems might be resolved if the speed is set to a lower frequency.
Explicit probe configuration
- Multi-target debug system
Specifies that the debug system consists of more than one CPU.
- Target number (TAP or Multidrop ID)
If the debug system is a multi-drop SWD, specify the Multidrop ID (in hexadecimal notation) of the DAP where your CPU is located.
If the debug system is a JTAG scan chain, specify the Target number TAP (Test Access Port) position of the device you want to connect to. The TAP numbers start from zero. If there are several CPUs at the TAP position, you also need to specify the CPU number on target.
- Target with multiple CPUs
Specifies that the target has several CPUs.
- CPU number on target
If the debug system is a multicore SWD, specify the CPU number on the DAP.
If the debug system is a JTAG scan chain and there are several CPUs at the TAP position, specify the CPU number on the TAP.
