IAR Embedded Workbench for Arm 10.10.x

Editor Colors dialog box

In this section:

What do you want to do?

  • Learn how to: Syntax coloring

  • Get reference information about the Editor Colors dialog box, see below the line.

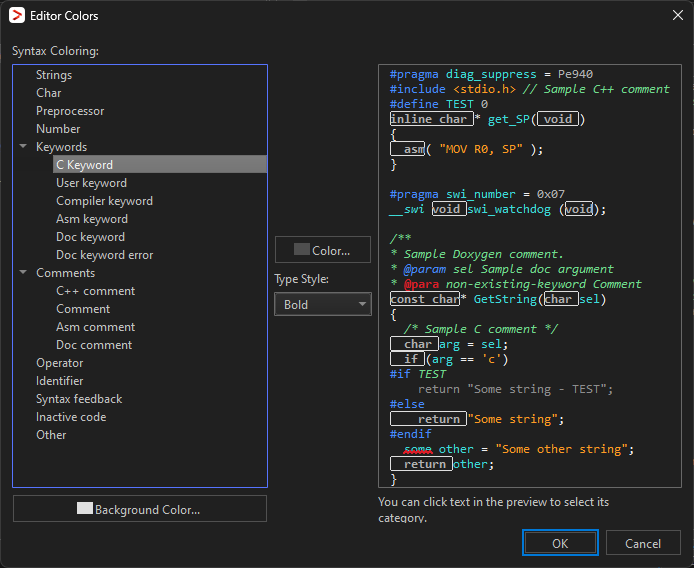

The Editor Colors dialog box is available from the Colors and Fonts category in the IDE Options dialog box.


Use this dialog box to customize the colors used by the selected theme in the editor window. A preview is shown of all the changes you make.

Syntax Coloring

Select the syntactic source code element that you want to modify. The User keyword element corresponds to the keywords that you have listed in the custom keyword file, see Editor Setup Files options.

Color

Click this button to display a list of colors to choose from. Automatic matches the standard color set in the Windows preferences. The current color has an asterisk (*) next to its name.

Type style

Select Normal, Bold, or Italic style for the selected element.

Background Color

Click to set the background color of the editor window. Automatic matches the standard color set in the Windows preferences. The current color has an asterisk (*) next to its name.
