IAR Embedded Workbench for Arm 10.10.x

Terminal I/O options

In this section:

What do you want to do?

  • Learn about the Terminal I/O window, see the debugger documentation in the online help system

  • Get reference information about the Terminal I/O tool options, see below the line.

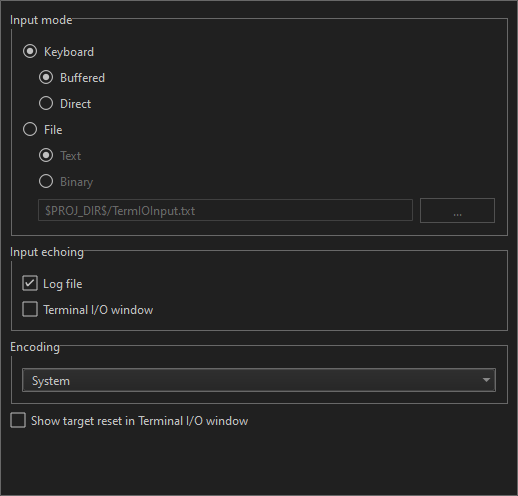

The Terminal I/O options are available by choosing Tools>Options.


Use this page to configure the C-SPY terminal I/O functionality.

Input mode

Controls how the terminal I/O input is read. Choose between:

Keyboard

Makes the input characters be read from the keyboard. Choose between:

  • Buffered, Buffers input characters

  • Direct, Does not buffer input characters

File

Makes the input characters be read from a file. Choose between:

  • Text, Reads input characters from a text file

  • Binary, Reads input characters from a binary file

A browse button is available for locating the input file.

Input echoing

Determines whether to echo the input characters and where to echo them. Choose between:

Log file

Echoes the input characters in the Terminal I/O log file. Requires that you have enabled the option Debug>Logging>Set Terminal I/O Log File>Enable Terminal I/O log file.

Terminal I/O window

Echoes the input characters in the Terminal I/O window.

Encoding

Determines the encoding used for terminal input and output. Choose between:

System (uses the Windows settings)
Western European
UTF-8
Japanese (Shift-JIS)
Chinese Simplified (GB2312)
Chinese Traditional (Big5)
Korean (Unified Hangul Code)
Arabic
Central European
Greek
Hebrew
Thai
Baltic
Russian
Vietnamese
Show target reset in Terminal I/O window

Displays a message in the C-SPY Terminal I/O window when the target resets.
