Data Log breakpoints dialog box

In this section:

What do you want to do?


The Data Log breakpoints dialog box is available from the context menu in the Breakpoints window.

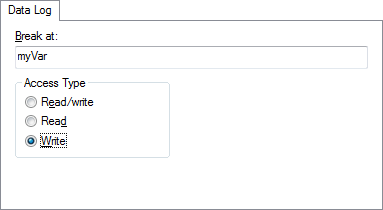

This figure reflects the C-SPY simulator.

Use the Data Log breakpoints dialog box to set a maximum of four data log breakpoints on memory addresses, see Setting breakpoints using the dialog box.

Requirements

The C-SPY simulator.

Break At

Specify a memory location as a variable (with static storage duration) or as an address.

Access Type

Selects the type of access to the variable that generates a log entry:

Read/Write

Read and write accesses from or writes to location of the variable.

Read

Read accesses from the location of the variable.

Write

Write accesses to location of the variable.
