CADI — Setup
In this section:

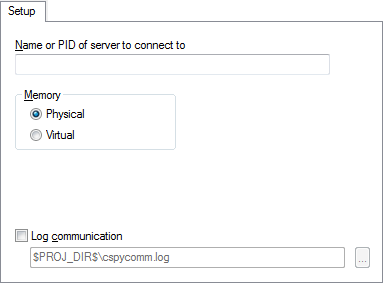

The Setup options control the C-SPY CADI driver:
Name or PID of server to connect to
To use the C-SPY CADI driver, you must start an Arm Fast model virtual platform with a CADI server running (using the -S command when starting the Fast model). If multiple Fast model platforms are running, use this option to specify the name or the Process ID of the Fast model server to connect to.
Log communication
Logs the communication between C-SPY and the target system to a file. To interpret the result, detailed knowledge of the interface is required.
