IAR Embedded Workbench for Arm 9.70.x

Code

In this section:

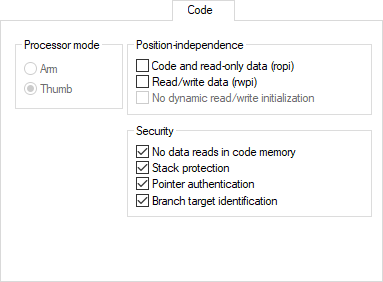

The Code options control the code generation of the compiler.


For more information about these compiler options, see Compiler options.

Processor mode

Selects the processor mode for your project:

Arm

Generates code that uses the full 32-bit instruction set.

Thumb

Generates code that uses the reduced 16-bit instruction set. Thumb code minimizes memory usage and provides higher performance in 8/16-bit bus environments.

Position-independence

Determines how the compiler should handle position-independent code and data:

Code and read-only data (ropi)

Generates code that uses PC-relative references to address code and read-only data.

Read/write data (rwpi)

Generates code that uses an offset from the static base register to address-writable data.

No dynamic read/write initialization

Disables runtime initialization of static C variables.

Security

Controls various features that increase the integrity of your application and device:

No data reads in code memory

Use this option to generate code that should run from a memory region where it is not allowed to read data, only to execute code.

The option also affects the automatic library selection performed by the linker. An IAR-specific ELF attribute is used for determining whether libraries compiled with this option should be used.

This option can only be used with Armv6-M and Armv7-M cores (includes Armv8-M, Armv8.1-M, Armv8-A and Armv8-R cores). For more information, see the compiler option ‑‑no_literal_pool in the IAR C/C++ Development documentation.

Stack protection

Use this option to enable stack protection for the functions that are considered to need it.

Pointer authentication

Use this option to make the compiler create the code needed for Pointer Authentication. For more information, see Branch protection (PACBTI) — 32-bit mode only.

Branch target identification

Use this option to make the compiler create the code needed for Branch Target Identification. For more information, see Branch protection (PACBTI) — 32-bit mode only.
