IAR Embedded Workbench for RH850 3.20.x

Images

In this section:

What do you want to do?

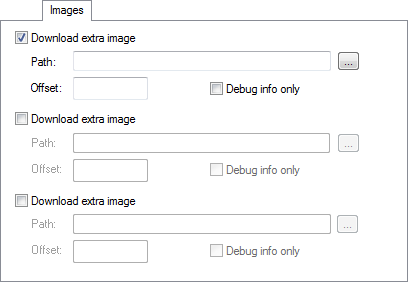

The Images options control the use of additional debug files to be downloaded.


Note

Images are only downloaded to RAM and no flash loading will be performed.

Download extra Images

Controls the use of additional debug files to be downloaded:

Path

Specify the debug file to be downloaded. A browse button is available.

Offset

Specify an integer that determines the destination address for the downloaded debug file.

Debug info only

Makes the debugger download only debug information, and not the complete debug file.

If you want to download more than three debug images, use the related C-SPY macro, see __loadImage.

For more information, see Loading multiple debug images.
