Terminal I/O window

In this section:

What do you want to do?

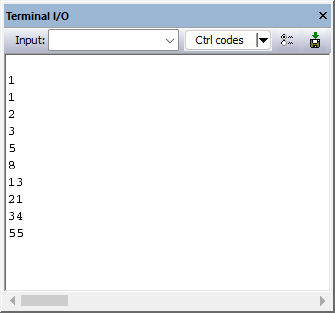

The Terminal I/O window is available from the View menu.


Use this window to enter input to your application, and display output from it.

To use this window, you must:

  • Link your application with the option Include C-SPY debugging support.

    C-SPY will then direct stdin, stdout and stderr to this window. If the Terminal I/O window is closed, C-SPY will open it automatically when input is required, but not for output.

The following possibilities for using Terminal I/O in real time apply:

Requirements

Can be used with all C-SPY debugger drivers and debug probes.

Toolbar
Input

Type the text that you want to input to your application.

Ctrl codes

Opens a menu for input of special characters, such as EOF (end of file) and NUL.


Opens the IDE Options dialog box where you can set options for terminal I/O. For information about the options available in this dialog box, see Terminal I/O optionsTerminal I/O options.


Opens the Terminal I/O Log File dialog box, where you can configure and toggle logging on/off, see Terminal I/O Log File dialog box.
