IAR Embedded Workbench for RH850 3.20.x

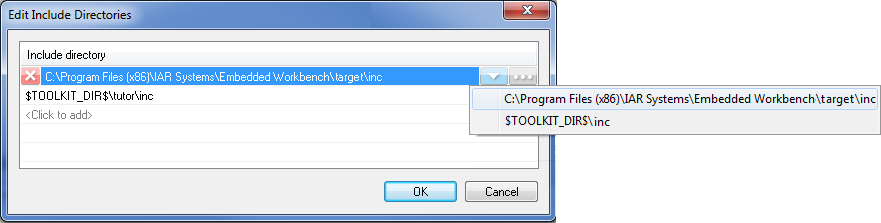

Edit Include Directories dialog box

In this section:

The Edit Include Directories dialog box is available from the Preprocessor page in the Options dialog box for the compiler and assembler categories.


Use this dialog box to specify or delete include paths, or to make a path relative or absolute.

To add a path to an include directory:

  1. Click the text <Click to add>. A browse dialog box is displayed.

  2. Browse to the appropriate include directory and click Select. The include path appears. To add yet another one, click <Click to add>.

To make the path relative or absolute:

  1. Click the drop-down arrow. A context menu is displayed. which shows the absolute path and paths relative to the argument variables $PROJ_DIR$ and $TOOLKIT_DIR$, when possible.

  2. Choose one of the alternatives.

To change the order of the list:

  1. Use the shortcut key combinations Ctrl+Up/Down.

  2. The list will be sorted accordingly.

To delete an include path:

  1. Select the include path and click the red cross at the beginning of the line, alternatively press the Delete key.

  2. The selected path will disappear.
