IAR Embedded Workbench for RH850 3.20.x

Library Configuration

In this section:

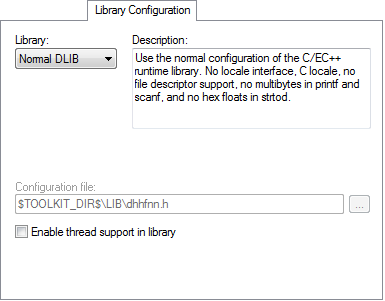

The Library Configuration options determine which library to use.


For information about the runtime library, library configurations, the runtime environment they provide, and the possible customizations, see The DLIB runtime environment.

Library

Selects which runtime library to use. For information about available libraries, see Prebuilt runtime libraries.

The names of the library object file and library configuration file that actually will be used are displayed in the Library file and Configuration file text boxes, respectively.

Configuration file

Displays the library configuration file that will be used. A library configuration file is chosen automatically depending on the project settings. If you have chosen Custom in the Library drop-down list, you must specify your own library configuration file.

Enable thread support in library

Select this option to automatically configure the runtime library for use with threads.
