IAR Embedded Workbench for RISC-V 3.40

Data Log breakpoints dialog box

In this section:

What do you want to do?


The Data Log breakpoints dialog box is available from the context menu in the Breakpoints window.

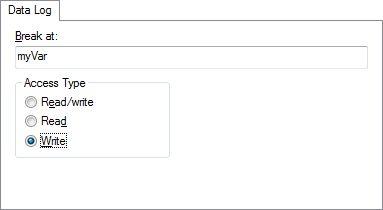

Use the Data Log breakpoints dialog box to set a maximum of four data log breakpoints on memory addresses, see Setting breakpoints using the dialog box.

Requirements

The C-SPY simulator.

Break At

Specify a memory location as a variable (with static storage duration) or as an address.

Access Type

Selects the type of access to the variable that generates a log entry:

Read/Write

Read and write accesses from or writes to location of the variable.

Read

Read accesses from the location of the variable.

Write

Write accesses to location of the variable.
