IAR Embedded Workbench for RISC-V 3.40

Debugger Macros window

In this section:

What do you want to do?

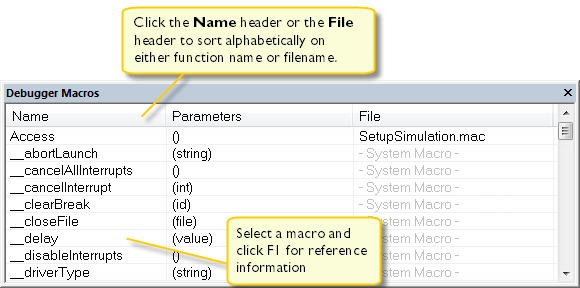

The Debugger Macros window is available from the View>Macros submenu during a debug session.


Use this window to list all registered debugger macro functions, either predefined system macros or your own. This window is useful when you edit your own macro functions and want an overview of all available macros that you can use.

  • Click the column headers Name or File to sort alphabetically on either function name or filename.

  • Double-clicking a macro defined in a file opens that file in the editor window.

  • To open a macro in the Macro Quicklaunch window, drag it from the Debugger Macros window and drop it in the Macro Quicklaunch window.

Requirements

Can be used with all C-SPY debugger drivers and debug probes.

Display area

This area contains these columns:

Name

The name of the debugger macro.

Parameters

The parameters of the debugger macro.

File

For macros defined in a file, the name of the file is displayed. For predefined system macros, -System Macro- is displayed.

Context menu

This context menu is available:


These commands are available:

Open File

Opens the selected debugger macro file in the editor window.

Add to Quicklaunch Window

Adds the selected macro to the Macro Quicklaunch window.

User Macros

Lists only the debugger macros that you have defined yourself.

System Macros

Lists only the predefined system macros.

All Macros

Lists all debugger macros, both predefined system macros and your own.

Open Macro Registration Window

Opens the Macro Registration window.
