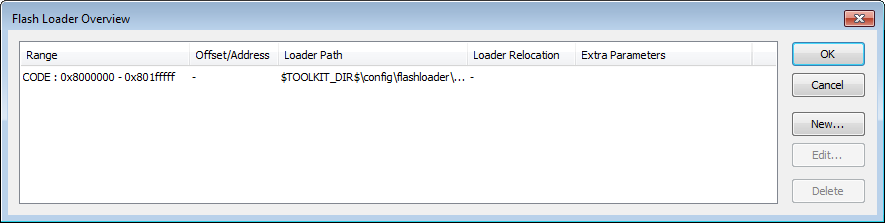

Flash Loader Overview dialog box

In this section:

The Flash Loader Overview dialog box is available from the Project>Options>Debugger>Download page.


This dialog box lists all defined flash loaders. If you have selected a device on the Project>Options>General Options>Target page for which there is a flash loader, this flash loader is by default listed in the Flash Loader Overview dialog box.

Requirements

Available for supported hardware debugger systems.

Display area

Each row in the display area shows how you have set up one flash loader for flashing a specific part of memory:

Range

The part of your application to be programmed by the selected flash loader.

Offset/Address

The start of the memory where your application will be flashed. If the address is preceded by an A, the address is absolute. Otherwise, it is a relative offset to the start of the memory.

Loader Path

The path to the flash loader *.flash file to be used (*.out for old-style flash loaders).

Loader Relocation

For relocatable flash loaders, this is the start of the target RAM memory where the flash loader will be downloaded.

Extra Parameters

List of extra parameters that will be passed to the flash loader.

Click on the column headers to sort the list by range, offset/address, etc.

Function buttons

These function buttons are available:

OK

The selected flash loader(s) will be used for downloading your application to memory.

Cancel

Standard cancel.

New

Displays a dialog box where you can specify what flash loader to use, see Flash Loader Configuration dialog box.

Edit

Displays a dialog box where you can modify the settings for the selected flash loader, see Flash Loader Configuration dialog box.

Delete

Deletes the selected flash loader configuration.
