IAR Embedded Workbench for RISC-V 3.40

Images window

In this section:

What do you want to do?

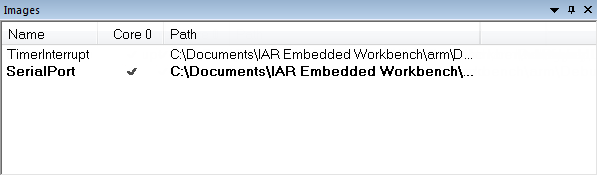

The Images window is available from the View menu.


This window lists all currently loaded debug images (debug files).

Normally, a source application consists of a single debug image that you debug. However, you can also load additional images. This means that the complete debuggable unit consists of several debug images.

Requirements

Can be used with all C-SPY debugger drivers and debug probes.

Display area

C-SPY can use debug information from one or more of the loaded debug images simultaneously. Double-click on a row to make C-SPY use debug information from that debug image. The current choices are highlighted.

This area lists the loaded debug images in these columns:

Name

The name of the loaded debug image.

Core N

Double-click in this column to toggle using debug information from the debug image when that core is in focus.

Path

The path to the loaded debug image.

Related information

For related information, see:
