IAR Embedded Workbench for RISC-V 3.40

Outline window

In this section:

What do you want to do?

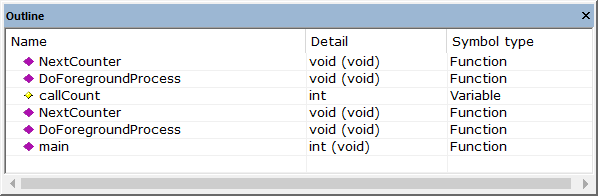

The Outline window is available from the View menu.


This window displays an hierarchical view in alphabetical order of all symbols defined in the active build configuration. This means that source browse information is available for symbols in source files and include files part of that configuration. Source browse information is not available for symbols in linked libraries.

The display area

The display area contains four columns:

Name

The names of global symbols and functions defined in the project. Note that an unnamed type, for example a struct or a union without a name, will get a name based on the filename and line number where it is defined. These pseudonames are enclosed in angle brackets.

Detail

Displays addition information about the element, for example input and output parameters.

Symbol type

Displays the symbol type for each element.

To sort each column, click its header.

Icons used for the symbol types

These are the icons used:


Base class


Class


Configuration


Enumeration


Enumeration constant


(Yellow rhomb)

Field of a struct


(Purple rhomb)

Function


Macro


Namespace


Template class


Template function


Type definition


Union


(Yellow rhomb)

Variable

Context menu

This context menu is available in the display area:


These commands are available:

Go to Definition

The editor window will display the definition of the selected item.

Find All Calls to

Opens the Call Graph window which displays all functions in the project that calls the selected function, see Call Graph window. If this command is disabled, make sure to select a function in the Outline window.

Move to Parent

If the selected element is a member of a class, struct, union, enumeration, or namespace, this menu command can be used for moving the insertion point to the enclosing element.

Progress bar

While the source browse information is generated for a project, a green progress bar is displayed in the status bar of the IDE window. Clicking on this progress bar opens a context menu with a command to open the Source Browse Log window, see Source Browse Log window.

If the source browser encounters a fatal error, the progress bar turns red.
