IAR Embedded Workbench for RL78 5.20

Symbols window

In this section:

What do you want to do?

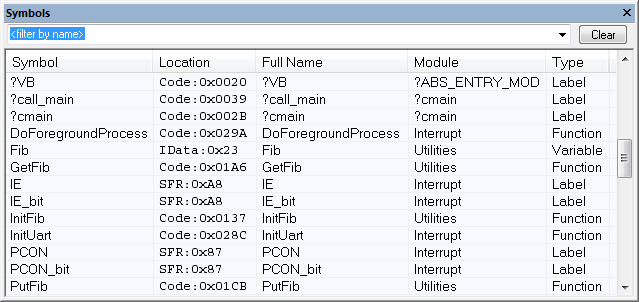

The Symbols window is available from the View menu.


This window displays all symbols with a static location, that is, C/C++ functions, assembler labels, and variables with static storage duration, including symbols from the runtime library.

You can drag the contents of cells in the Symbol, Location, and Full Name columns and drop in some other windows in the IDE.

Requirements

Can be used with all C-SPY debugger drivers and debug probes.

Toolbar

The toolbar contains:

<filter by name>

Type the first characters of the symbol names that you want to find, and press Enter. All symbols (of the types you have selected on the context menu) whose name starts with these characters will be displayed. If you have chosen not to display some types of symbols, the window will list how many of those that were found but are not displayed.

Use the drop-down list to use old search strings. The search box has a history depth of eight search entries.

Clear

Cancels the effects of the search filter and restores all symbols in the window.

Display area

This area contains these columns:

Symbol

The symbol name.

Location

The memory address.

Full name

The symbol name—often the same as the contents of the Symbol column but differs for example for C++ member functions.

Module

The program module where the symbol is defined.

Type

The symbol type, whether it is a function, label, or variable.

Click the column headers to sort the list by symbol name, location, full name, module, or type.

Context menu

This context menu is available:


These commands are available:

Functions

Toggles the display of function symbols on or off in the list.

Variables

Toggles the display of variables on or off in the list.

Labels

Toggles the display of labels on or off in the list.

Add to Watch

Adds the selected symbol to the Watch window.

Add to Live Watch

Adds the selected symbol to the Live Watch window.

Copy

Copies the contents of the cells on the selected line.

Row

Copies all contents of the selected line.

Symbol

Copies the contents of the Symbol cell on the selected line.

Location

Copies the contents of the Location cell on the selected line.

Full Name

Copies the contents of the Full Name cell on the selected line.

Module

Copies the contents of the Module cell on the selected line.

Type

Copies the contents of the Type cell on the selected line.
