IAR Embedded Workbench for RX 5.20

Memory Save dialog box

In this section:

What do you want to do?

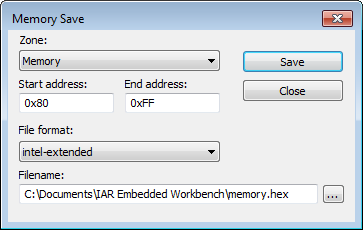

The Memory Save dialog box is available by choosing Debug>Memory>Save or from the context menu in the Memory window.


Use this dialog box to save the contents of a specified memory area to a file.

Requirements

Can be used with all C-SPY debugger drivers and debug probes.

Zone

Selects a memory zone, see C-SPY memory zones.

Start address

Specify the start address of the memory range to be saved.

End address

Specify the end address of the memory range to be saved.

File format

Selects the file format to be used, which is Intel-extended by default.

Filename

Specify the destination file to be used. A browse button is available.

Save

Saves the selected range of the memory zone to the specified file.
