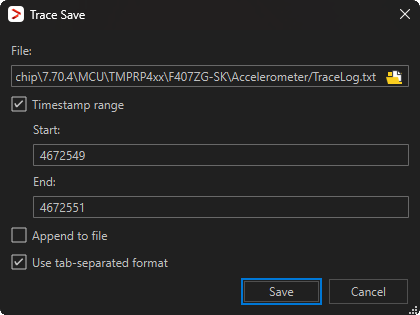

Trace Save dialog box

In this section:

The Trace Save dialog box is available from the driver-specific menu, and from the Trace window and the ITM Trace window.

Requirements

One of these alternatives:

  • The C-SPY J-Link/J-Trace driver

  • The C-SPY ST-LINK driver

  • The C-SPY TI XDS driver

  • The I-jet driver and a device that supports trace.

Index Range

Saves a range of frames to a file. Specify a start index and an end index (as numbered in the index column in the Trace window).

Append to file

Appends the trace data to an existing file.

Use tab-separated format

Saves the content in columns that are tab-separated, instead of separated by white spaces.

File

Specify a file for the trace data.
