CMSIS-Toolbox options

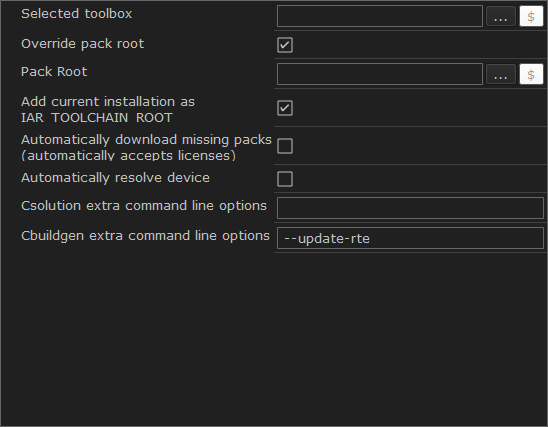

The CMSIS-Toolbox page contains options for using IAR Embedded Workbench with CMSIS-Toolbox. The page is available by choosing Project>Options>CMake/CMSIS-Toolbox.
Selected toolbox
This is the path to the CMSIS-Toolbox installation. Change this path to use another CMSIS-Toolbox installation.
Override pack root
Use this option to override the location of the pack root folder (the local PACK repository).
Add current installation as IAR_TOOLCHAIN_ROOT
Sets the IAR_TOOLCHAIN_ROOT environment variable to the path of the CMSIS-Toolbox installation, for the instance of IAR Embedded Workbench you are currently using.
Automatically download missing packs (automatically accepts licenses)
Select this option to make IAR Embedded Workbench automatically attempt to locate and download missing packs.
Note
Packs will be installed regardless of the type of license that governs their use.
Automatically resolve device
Select this option to set the device automatically, based on the information in the csolution.yml project file. This will change the device setting on the project options Target page (Project>Options>General>Target).
Csolution extra command line options
Use this field to send command line options directly to csolution, the CMSIS-Toolbox Project Manager.
Cbuildgen extra command line options
Use this field to send command line build options directly to the cbuildgen tool.
