TI MSP-FET menu

In this section:

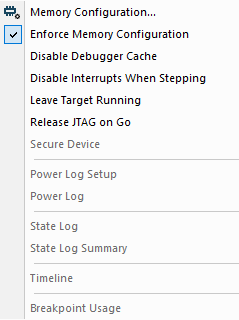

When you are using the C-SPY TI MSP-FET driver, the TI MSP-FET menu is added to the menu bar.

Menu commands

These commands are available on the menu:

Memory Configuration

Displays a dialog box, see Memory Configuration dialog box for C-SPY hardware debugger drivers.

Enforce Memory Configuration

Prevents the driver from accessing any memory ranges in the zone Memory that have not been defined in the Memory Configuration dialog box.

Disable Debugger Cache

Disables memory caching and memory range checking in C-SPY.

Normally, C-SPY uses the memory range information in the Memory Configuration dialog box both to restrict access to certain parts of target memory and to cache target memory contents for improved C-SPY performance. Under certain rare circumstances, this is not appropriate, and you can choose Disable Debugger Cache to turn off the caching and memory range checking completely. All accesses from C-SPY will then result in corresponding accesses to the target system. Some of those circumstances are:

  • When memory is remapped at runtime and cannot be specified as a fixed set of ranges.

  • When the memory range setup is incorrect or incomplete.

Disable Interrupts When Stepping

Ensures that only the stepped statements will be executed. Interrupts will not be executed. This command can be used when not running at full speed and some interrupts interfere with the debugging process.

Leave Target Running

Leaves the application running on the target hardware after the debug session is closed.

Release JTAG on Go

Sets the JTAG drivers in tri-state so that the device is released from JTAG control whenGoButton_Mym80_02.png the Go button is activated.

Secure Device

Activates the flash memory protection lock. After this command has been executed, you must terminate the debug session and then reconnect the power to make it take effect.

Power Log Setup

Opens a window, see Power Log Setup window.

Power Log

Opens a window, see Power Log window.

State Log

Opens a window, see State Log window.

State Log Summary

Opens a window, see State Log Summary window.

Timeline

Opens a window, see The application timeline.

Breakpoint Usage

Opens a window which lists all active breakpoints, see Breakpoint Usage window.
