TI XDS menu

In this section:

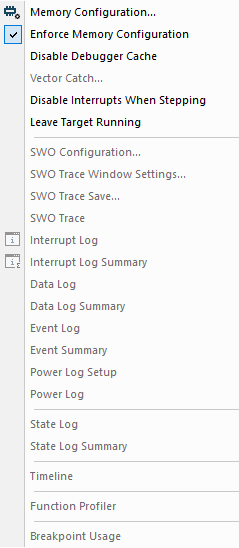

When you are using the C-SPY TI XDS driver, the TI XDS menu is added to the menu bar.

Menu commands

These commands are available on the menu:

Memory Configuration

Displays a dialog box, see Memory Configuration dialog box for C-SPY hardware debugger drivers.

Enforce Memory Configuration

Prevents the driver from accessing any memory ranges in the zone Memory that have not been defined in the Memory Configuration dialog box.

Disable Debugger Cache

Disables memory caching and memory range checking in C-SPY.

Normally, C-SPY uses the memory range information in the Memory Configuration dialog box both to restrict access to certain parts of target memory and to cache target memory contents for improved C-SPY performance. Under certain rare circumstances, this is not appropriate, and you can choose Disable Debugger Cache to turn off the caching and memory range checking completely. All accesses from C-SPY will then result in corresponding accesses to the target system. Some of those circumstances are:

  • When memory is remapped at runtime and cannot be specified as a fixed set of ranges.

  • When the memory range setup is incorrect or incomplete.

Vector Catch

Opens a dialog box for setting a breakpoint directly on a vector in the interrupt vector table, see Vector Catch dialog box. Note that this command is not available for all Arm cores.

Disable Interrupts When Stepping

Ensures that only the stepped statements will be executed. Interrupts will not be executed. This command can be used when not running at full speed and some interrupts interfere with the debugging process.

Leave Target Running

Leaves the application running on the target hardware after the debug session is closed.

Because existing breakpoints might not be automatically removed, consider disabling all breakpoints before using this menu command.

SWO Configuration

Displays a dialog box, see SWO Configuration dialog box.

SWO Trace Window Settings

Displays a dialog box, see SWO Trace Window Settings dialog box.

SWO Trace Save

Displays a dialog box to save the collected trace data to a file, see Trace Save dialog box.

SWO Trace

Opens the SWO Trace window to display the collected trace data, see Trace window.

Interrupt Log

Opens a window, see Interrupt Log window.

Interrupt Log Summary

Opens a window, see Interrupt Log Summary window.

Data Log

Opens a window, see Data Log window.

Data Log Summary

Opens a window, see Data Log Summary window.

Event Log

Opens a window, see Event Log window.

Event Log Summary

Opens a window, see Event Log Summary window.

Power Log Setup

Opens a window, see Power Log Setup window.

Power Log

Opens a window, see Power Log window.

State Log

Opens a window, see State Log window.

State Log Summary

Opens a window, see State Log Summary window.

Timeline

Opens a window, see The application timeline.

Function Profiler

Opens a window which shows timing information for the functions, see Function Profiler window.

Breakpoint Usage

Opens a window which lists all active breakpoints, see Breakpoint Usage window.
