J-Link menu

In this section:

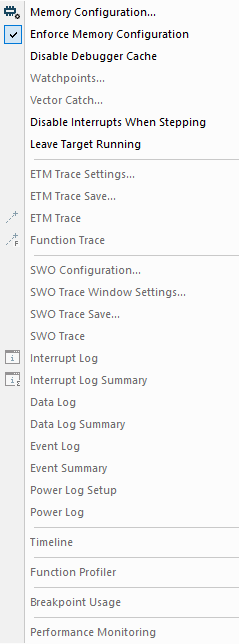

When you are using the C-SPY J-Link driver, the J-Link menu is added to the menu bar.

Menu commands

These commands are available on the menu:

Memory Configuration: Displays a dialog box, see Memory Configuration dialog box for C-SPY hardware debugger drivers.

Enforce Memory Configuration: Prevents the driver from accessing any memory ranges in the zone Memory that have not been defined in the Memory Configuration dialog box.

Disable Debugger Cache

Disables memory caching and memory range checking in C-SPY.

Normally, C-SPY uses the memory range information in the Memory Configuration dialog box both to restrict access to certain parts of target memory and to cache target memory contents for improved C-SPY performance. Under certain rare circumstances, this is not appropriate, and you can choose Disable Debugger Cache to turn off the caching and memory range checking completely. All accesses from C-SPY will then result in corresponding accesses to the target system. Some of those circumstances are:

When memory is remapped at runtime and cannot be specified as a fixed set of ranges.
When the memory range setup is incorrect or incomplete.

Watchpoints: Displays a dialog box for setting watchpoints, see Code breakpoints dialog box.

Vector Catch: Displays a dialog box for setting a breakpoint directly on a vector in the interrupt vector table, see Vector Catch dialog box. Note that this command is not available for all Arm cores.

Disable Interrupts When Stepping: Ensures that only the stepped statements will be executed. Interrupts will not be executed. This command can be used when not running at full speed and some interrupts interfere with the debugging process.

Leave Target Running

Leaves the application running on the target hardware after the debug session is closed.

Because existing breakpoints might not be automatically removed, consider disabling all breakpoints before using this menu command.

ETM Trace Settings

Displays a dialog box to configure ETM trace data generation and collection, see ETM Trace Settings dialog box (J-Link/J-Trace).

This menu command is only available when using either ETM or J-Link with ETB.

ETM Trace Save

Displays a dialog box to save the collected trace data to a file, see Trace Save dialog box.

This menu command is only available when using either ETM or J-Link with ETB.

ETM Trace

Opens the ETM Trace window to display the collected trace data, see Trace window.

This menu command is only available when using either ETM or J-Link with ETB.

Function Trace

Opens a window which displays the trace data for function calls and function returns, see Function Trace window.

This menu command is only available when using either ETM or J-Link with ETB.

SWO Configuration

Displays a dialog box, see SWO Configuration dialog box.
